FLAG Universal Set
inkl. MwSt. & kostenloser Versand in DE
✔ Unique lighting designs - customization upon request
✔ 2000 lux max. illuminance
✔ approx. 100 lumen luminous flux (depending on graphics)
✔ 2-6m adjustable image size
✔ Patented MLA® projection technology
✔ Robust, waterproof housing
✔ DEKRA tested
✔ 100% Made in Germany
Choose options
inkl. MwSt. & kostenloser Versand in DE
With the GLOWWING® Universal Sets we offer you a completely new kind of floor lighting for your vehicle. They project two impressive light graphics directly next to the vehicle, for a distinctive appearance and more safety at night. Now compatible with every vehicle!
The most important things at a glance:
✔ Unique light design
✔ 1000 Lux peak illuminance
✔ 40 lumen light output
✔ 2-6m adjustable image size
✔ Patented MLA® projection technology
✔ Robust, waterproof housing
✔ DEKRA-tested
✔ 100% Made in Germany

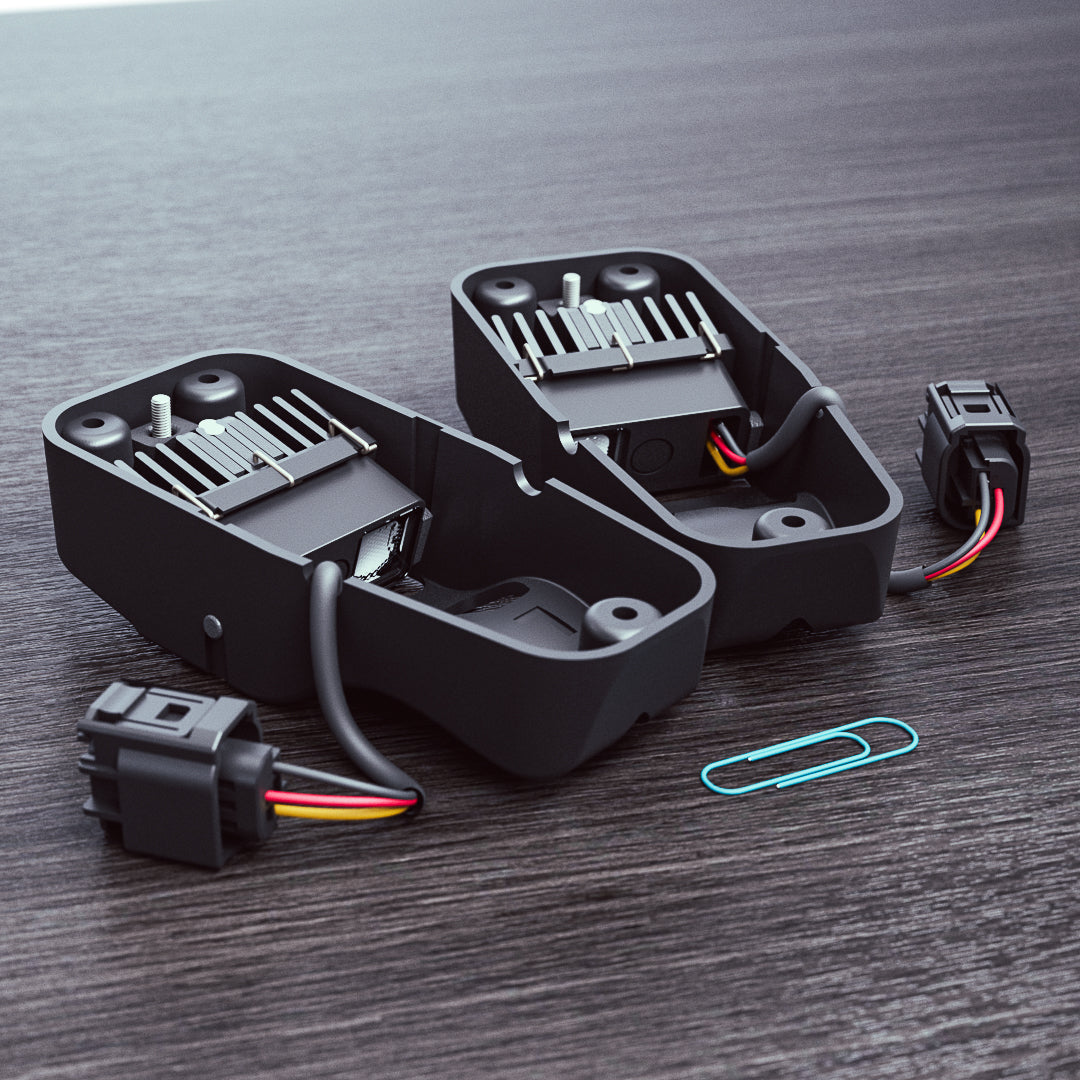

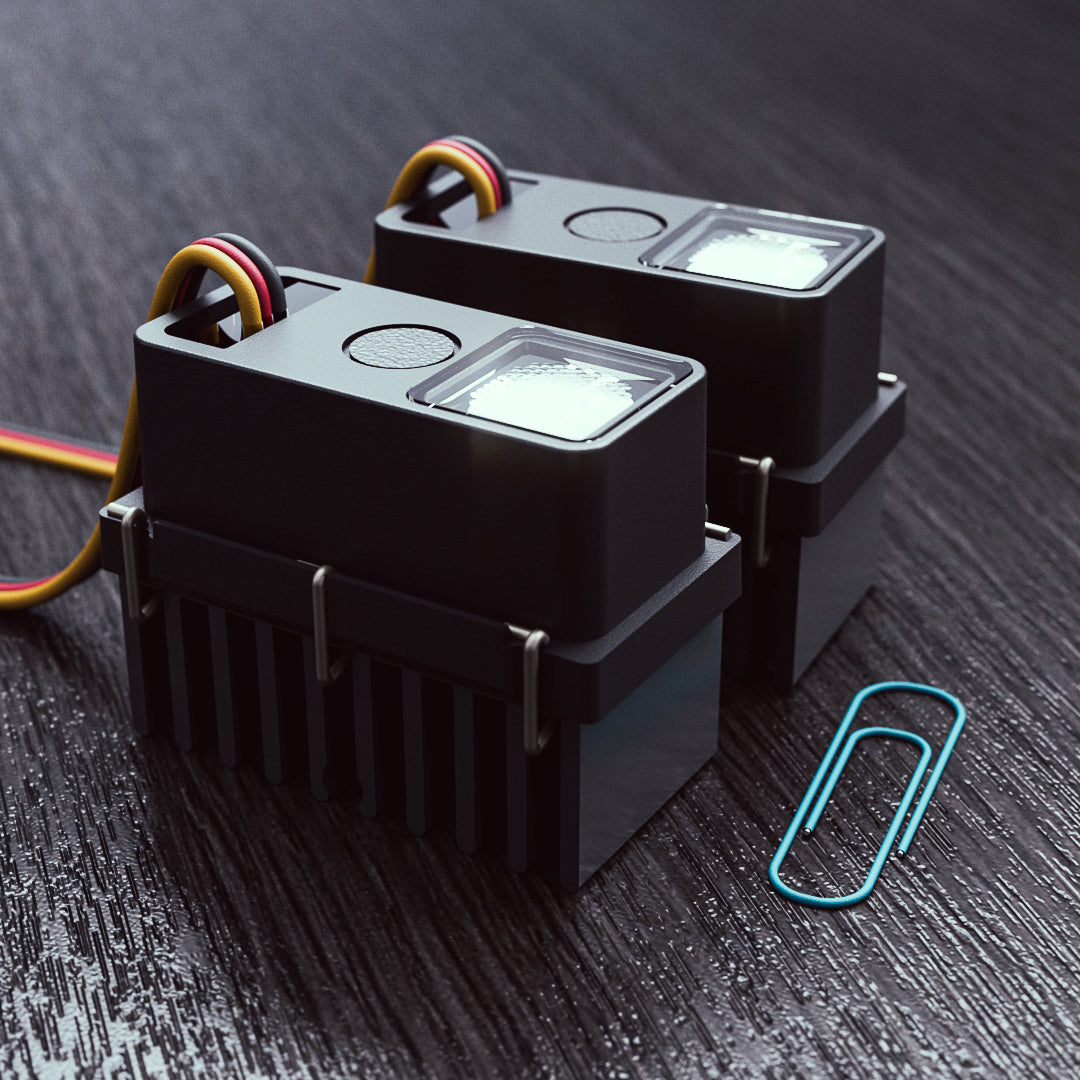

One set contains two high-tech MLA projection modules (left and right) for mounting on the vehicle underbody. Each module projects a 4m long light image in ANGEL design. Included is also a GLOWWING® SWITCH control unit incl. cable set, which allows you to connect the modules to the vehicle electronics easily and trouble-free.
The use of the modules in road traffic is allowed and 100% legal, if a positive vehicle test according to §21 StvZO (so called single acceptance) is available, i.e. the supplied installation instructions are followed and an operation while driving is excluded by suitable electrical contacts.
GLOWWING recommends connecting the SWITCH signal line, for example, to a 12V supply line of the door handle lighting to enable activation when the vehicle is unlocked or the door is opened.
ATTENTION:
In the European ECE area, due to visibility requirements of UNECE-R48, only the combined installation of GLOWWING® Universal Module and GLOWWING® ECE-Tail is permitted. For proper assembly and installation of the modules on the vehicle, please refer to the enclosed operating instructions.
Fancy some color?
We offer an optional GLOWWING® Color Kit.
Product data (per module):
|
Dimensions (mit ECE-Tail): |
85 (175) x 53 x 24 mm3 |
|
Weight: |
39g / 61g mit ECE-Tail |
|
Protection class |
dustproof, waterproof |
|
temperature range: |
-30 bis +85°C |
|
installation: |
Vehicle underbody |
|
Projection image: |
GLOWWING® FLAG |
|
Peak Illuminance: |
1000 Lux |
|
luminous flux: |
~ 40 Lumen |
|
Light color: |
weiß, 6300 K |
|
Power consumption: |
4 Watt |
|
Operating voltage: |
12V DC |
|
Guarantee: |
2 Years |
Scope of delivery:
- 2x GLOWWING® FLAG Universal projection modules (1x right, 1x left), color black
- 2x ECE tail (1x right, 1x left), color black
- GLOWWING® SWITCH (control unit for electrical connection of projection modules to vehicle electronics)
- 4x 2m input cable set (4 strands)
- 2x 4m output cable (1x right, 1x left), 2-wire cable
- 10x fixing screws (5x right, 5x left)
- Wera® Stubby TX20 fastening and adjustment tool
- Operating instructions with mounting instructions
delivery time: 3-7 days
